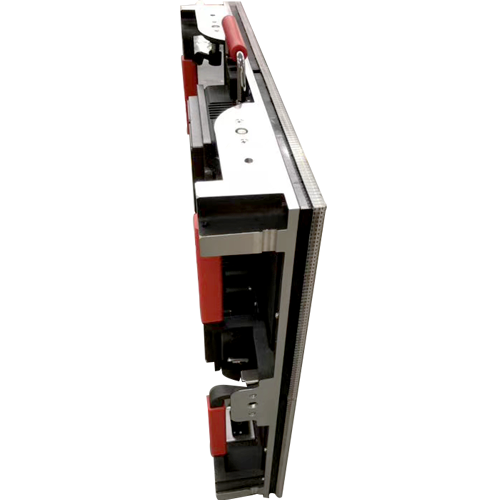

PRO Series

 Tip: click on the image to enlarge
Pixel Pitch :P3.9   P4.8  P5.7

Panel Dimensions:500mm x 500mm/1000mm

Module Size:250mm x 250mm

Panel Material:Die Casting Aluminum

PRODUCT FEATURES

>> Lightweight design

>>Fast installation

>> Easy maintenance

>>Flexible panels combination

>> Front and rear installation and maintenance


Safe and Stable


Standard manufacturing process and a number of quality tests ensure safe operation of GS series.

Reliable Raw Materials

Standardized manufacturing process

Quality control throughout whole manufacturing process

Certifications CE ROHS

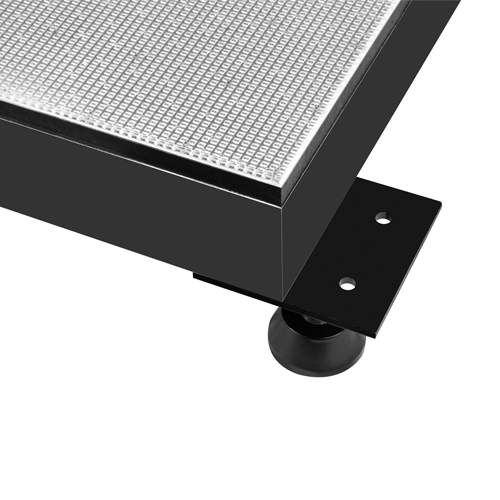

SDF-OTS-P4.8  With Professional PC Module Cover IP65


















SPECS
Modle   SDF-OTS-P3.9 SDF-OTS-P4.8 SDF-OTS-P5.7
Pixel Pitch mm 3.9mm 4.8mm 5.7mm
IP Rate Outdoor(IP65)
Brightness cd/m2 5000 5500 1500
LED Type   3IN1SMD1921 3IN1SMD1921 3IN1SMD2727/3528-B
Viewing Angel degree:H 120°
degree:V 140°
Size(WxHxD) mm/LDM 250mm x 250mm 250mm x 250mm 250mmx250mm
mm/tile 500mmx500mm/1000mmx85mm 500mmx500mm/500mmx1000mm 1.64＇x1.64＇/3.2＇
Weight MODULE 0.45kg
tile 8.9kg 8.9kg 15kg
sqm 35.6kg   30kg
Pixel Density pixel/tile 16384 10816 14792
pixel/sqm 65536 43264 29584
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V50/60
Power Consumption (max/average)   W/tile 237/88 237/88 280/90
W/sqm 950/350 950/350 560/185
Max.Power Connection tile 8 8 10
Weight Load Max KG 2000
Color Process bit/color 14～16
Refresh Rate Hz 1920-3840Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18

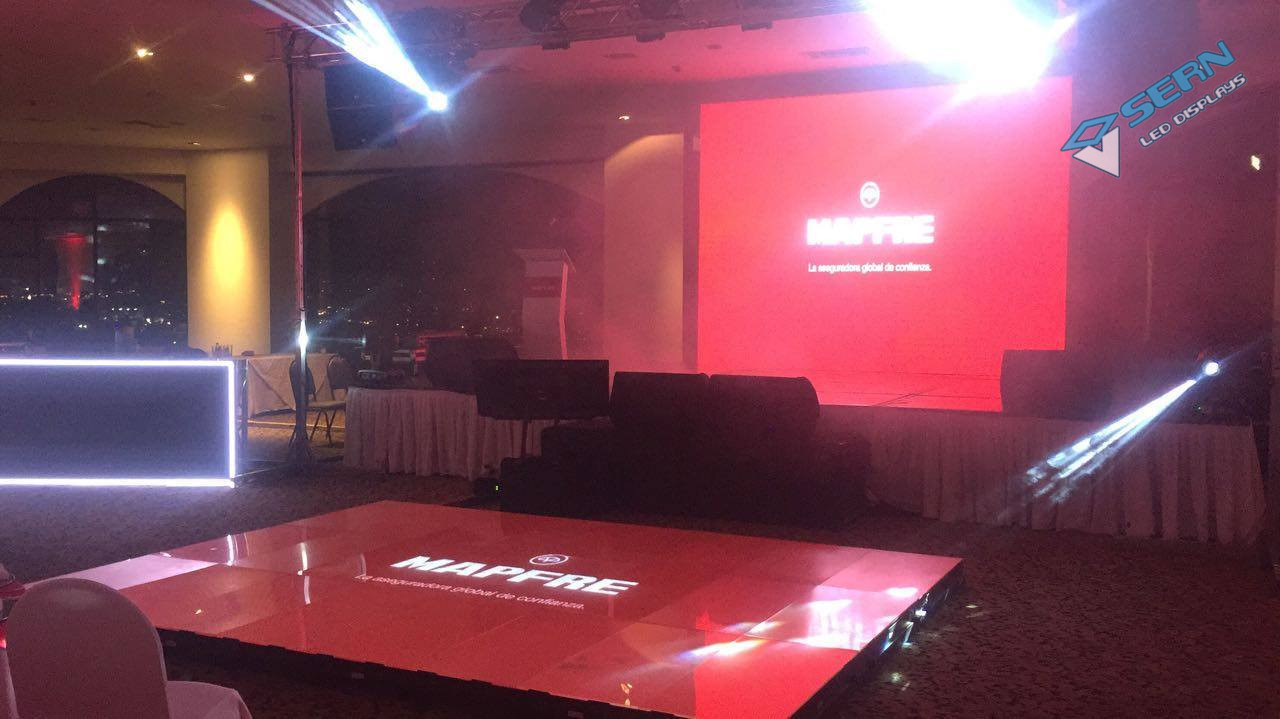

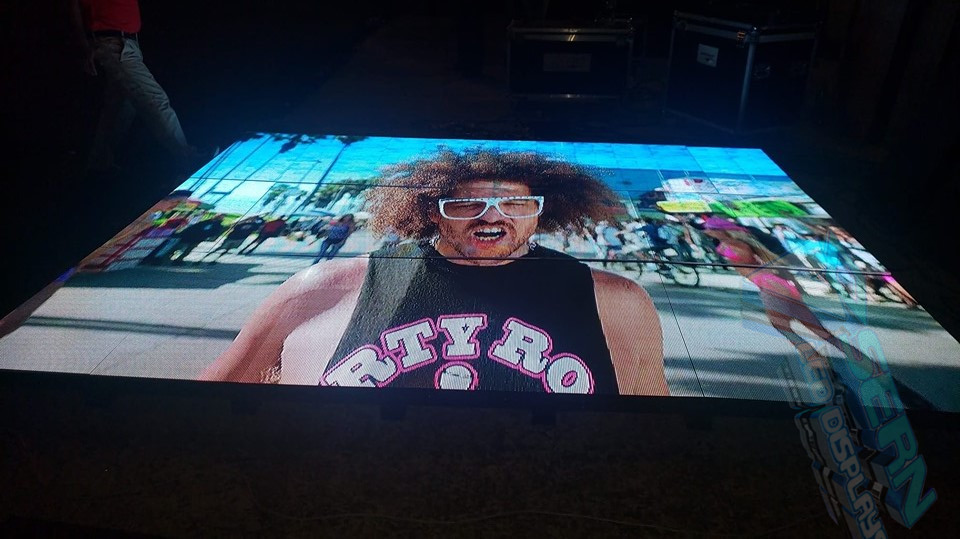

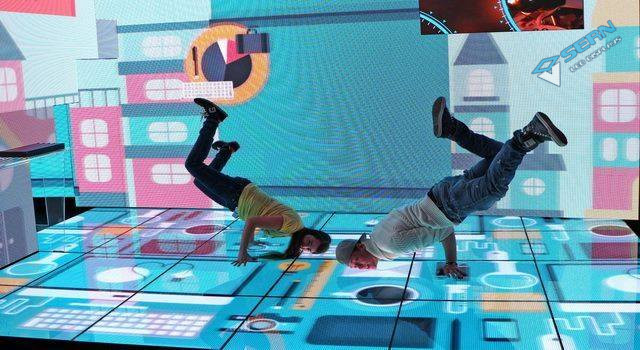

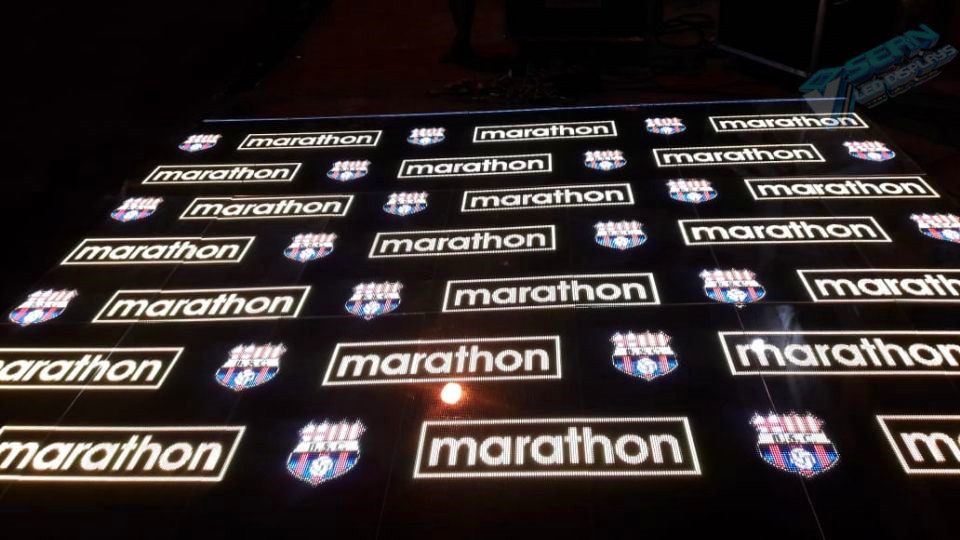

Applications   Rental Hanging +Dance Floor
Certification ROHSCEFCC
