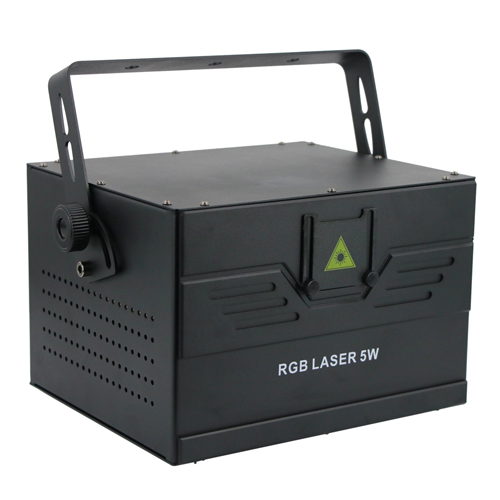

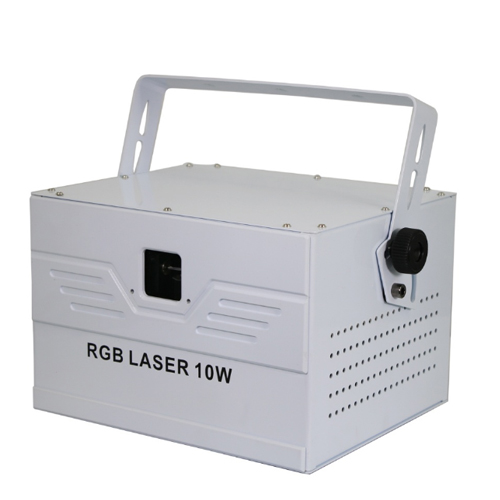

RGB Animation laser light
Maintenance
1. Try to prevent dust, dirt and smoke oil from being artificially laid or even flowing into the lamp body,
and try to keep the laser performer as clean as possible in the use environment;
2. Please use professional glass cleaner and clean the reflective lens with a velvet cloth regularly every month
to ensure maximum brightness output of the laser and extend the service life of the light source.
Be careful not to wipe the lens with wet cloth or other chemical solvents.
The number of cleaning times depends on the lamp.
The frequency of operation depends on the surrounding usage environment;
it is recommended to clean it every 15 days.
1. Try to prevent dust, dirt and smoke oil from being artificially laid or even flowing into the lamp body,
and try to keep the laser performer as clean as possible in the use environment;
2. Please use professional glass cleaner and clean the reflective lens with a velvet cloth regularly every month
to ensure maximum brightness output of the laser and extend the service life of the light source.
Be careful not to wipe the lens with wet cloth or other chemical solvents.
The number of cleaning times depends on the lamp.
The frequency of operation depends on the surrounding usage environment;
it is recommended to clean it every 15 days.
Power supply: AC110/220V, 50-60Hz±10%
Rated power: max 120W
Laser power: RGB1-10W
Laser modulated signal: analog modulation or TTL modulation
Type of laser: imported semiconductor solid-state laser
Beam size at the aperture :<7*6mm
Beam divergence:<1.3mrad
Laser wavelength: red 638±5nm, green 520±5nm, blue 450±5nm
Scanning system: 20KPPS high speed scanning
Control mode:ILDA control /DMX512 signal control /self-walk/master-slave
Control interface: control, international DXM512 , can connect with American pangolin laser software and tiger, pearl, MA controller,etc.
Safety function: one beam protection, no signal to close the light, etc
Suitable places: dacing hall, club, show and other enterntainment venues
Working environment: indoor
Packing : carton case
