FS6.7PRO

 Tip: click on the image to enlarge
Pixel Pitch: FS6.7PRO

Panel Dimensions: 1280x960mm

Module Size: 480X320mm

Panel Material: Die Casting Aluminum +Front access

Packaging Details: Wooden case / Flight case


FS6.7PRO 1280x960mm LED Advertising Board

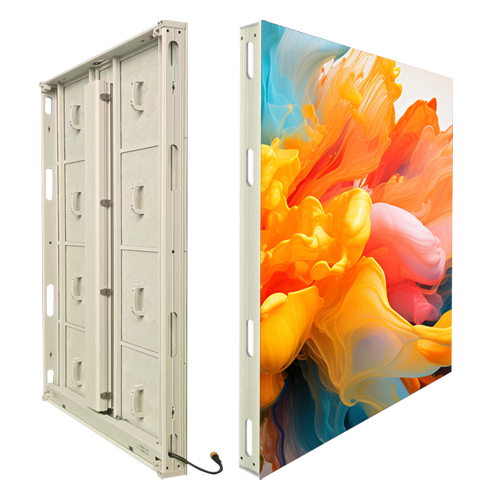

FS6.7PRO LED advertising board with 1280mmx960mm size cabinet design. The cabinet is made of Die-cast aluminum which is strong and durable. This LED display can be used for both indoor and outdoor applications including fixed installations and rentals.

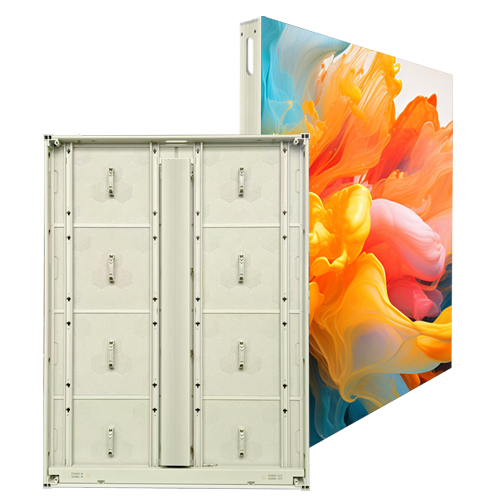

FS6.7PRO-1280x960mm Advertising Front Access Maintenance Board

Superb Display Effect

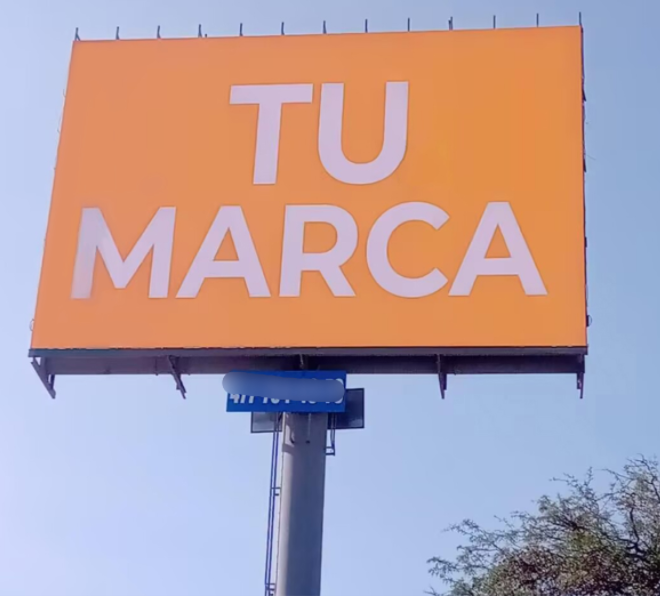

In commercial display applications FS6.7PRO LED screen 10000CD brightness and high refresh rate bring users more realistic and vivid visual effects.


Rental & Fixed   SNX-OTS-P6.67FS-PRO
Pixel Pitch (mm) 6.67mm
Pixel Density (dot/㎡ ) 22500
LED Type SMD2727
Module Size (W x H x D)mm 480*320
Module Resolution (W x H) 72x48
Power Consumption per Module (W) 20
Driver Mode (Scan) 1/6 scan
Brightness (cd/㎡ ) 10000(Golden wire)
Grey Scale (bits) 16
Refresh Rate (Hz) 3840Hz / 7680Hz
Cabinet Resolution (W x H) 192x144
Cabinet Weight (Kg/㎡ ) 28
Max Power Consumption (W/㎡ ) 570
Average Power consumption (W/㎡ ) 190
View Angle (Hº/Vº) 140
Mini View Distance (m) 3
Operating Use Temperature (℃) -10℃~40℃
Storage Use Temperature (℃) -20℃~50 ℃
Input Voltage (V) 220V/110~240V
Input Power Frequency (Hz) 50Hz-60Hz
Failure Rate <1/100000
Signal Input Format SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc.
Life Time (hrs) 100000
IP Level (Indoor/Outdoor)  IP66
