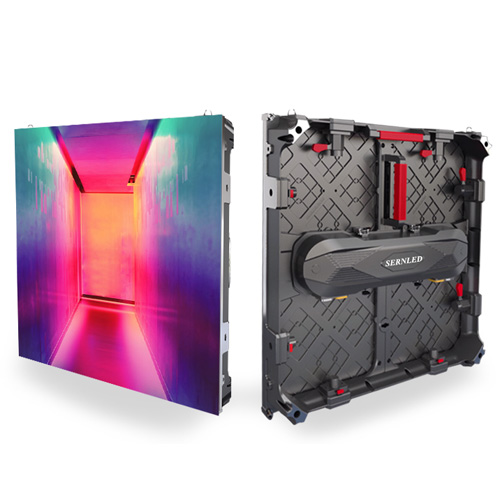

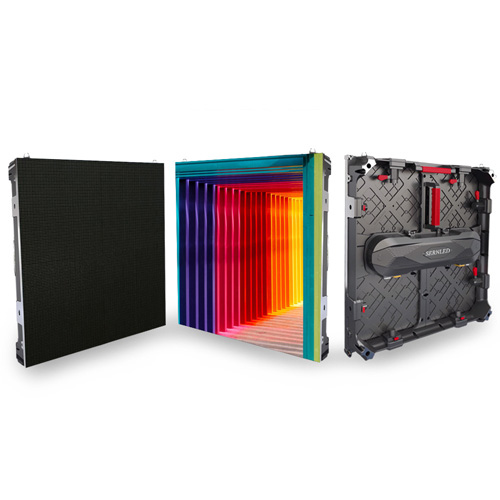

IA series

 Tip: click on the image to enlarge
Pixel Pitch:P2.9IA  P3.9IA (Indoor)   P3.9IA  P4.8IA (Outdoor)

Panel Dimensions:500mm x 500mm

Module Size:250mm x 250mm

Panel Material:Die Casting Aluminum

Panel Weight:7.5Kg


PRODUCT FEATURES


Ultra-light design is easy to install and disassemble.

The HUB board design is easy to maintain




The cabinet contains adsorption magnets and the module can be maintained before and after





The cabinet is installed with precise positioning and has anti-collision function.

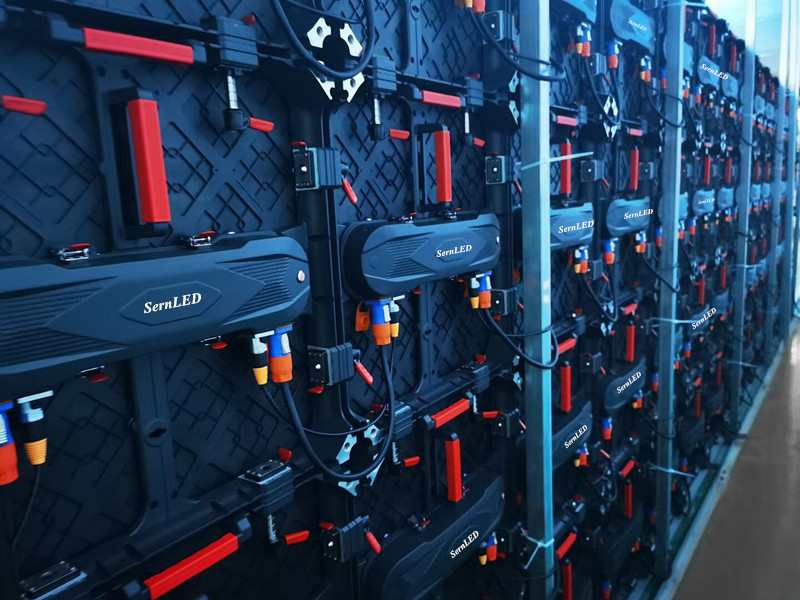

Easy to hang installation





Arc-shaped lock design can be deformed at will





SPECS
Modle   SSX-IN-P2.9IA SSX-IN-P3.9IA SSX-OTS-P3.9IA SSX-OTS-P4.8IA
Pixel Pitch mm 2.97mm 3.91mm 3.91mm 4.81mm
IP Rate   Indoor(IP32) Outdoor(IP65)
Brightness cd/m2 1200 1300 5500 5500
LED Type   3IN1SMD2020 3IN1SMD1515/2020 3IN1SMD1921 3IN1SMD1921/2727
Viewing Angel degree:H 160° 160° 140° 140°
degree:V 160° 140° 160° 140°
Size(WxHxD) mm/LDM 250mmx250mm 250mmx250mm 250mmx250mm 250mmx250mm
mm/tile 500x500mm 500x500mm 500x500mm 500X500mm
Weight MODULE 0.45kg 0.85kg
tile 7.5kg 7.5kg 7.5kg 7.5kg
sqm 30kg 30kg 30kg 30kg
Pixel Density pixel/tile 28341 16384 16384 10810
pixel/sqm 113367 65536 65536 43243
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V  50/60
Power Consumption (max/average)   W/tile 165/65 165/65 200/75 200/65
W/sqm 650/250 650/250 800/250 800/240
Max.Power Connection tile 10
Max.Date Connection tile 30
Color Process bit/color 14～16
Refresh Rate Hz 3840Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18
Curved degree(OPTL) -15～15
Certification   ROHS  CE    FCC
