TVD-4K LED Video Wall

 Tip: click on the image to enlarge
Pixel pitch: P0.9  P1.25   P1.56   P1.875

Brightness:800nits

Refresh rate:3840Hz+

Weight:4.5kg
Only 4.5kg for each panel

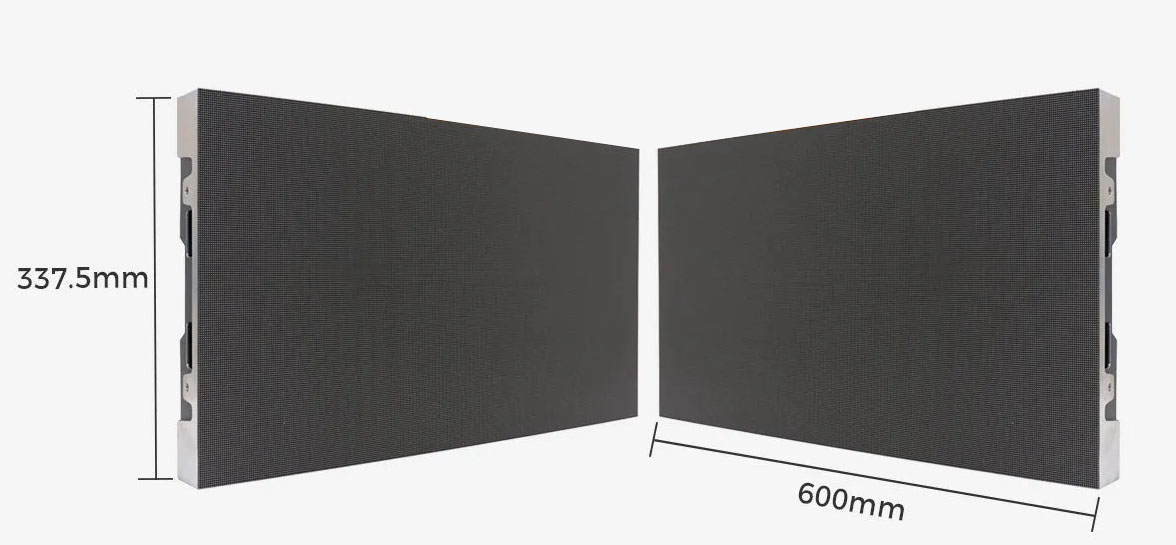

Cabinet Size Design with 600*337.5mm dimension high flatness

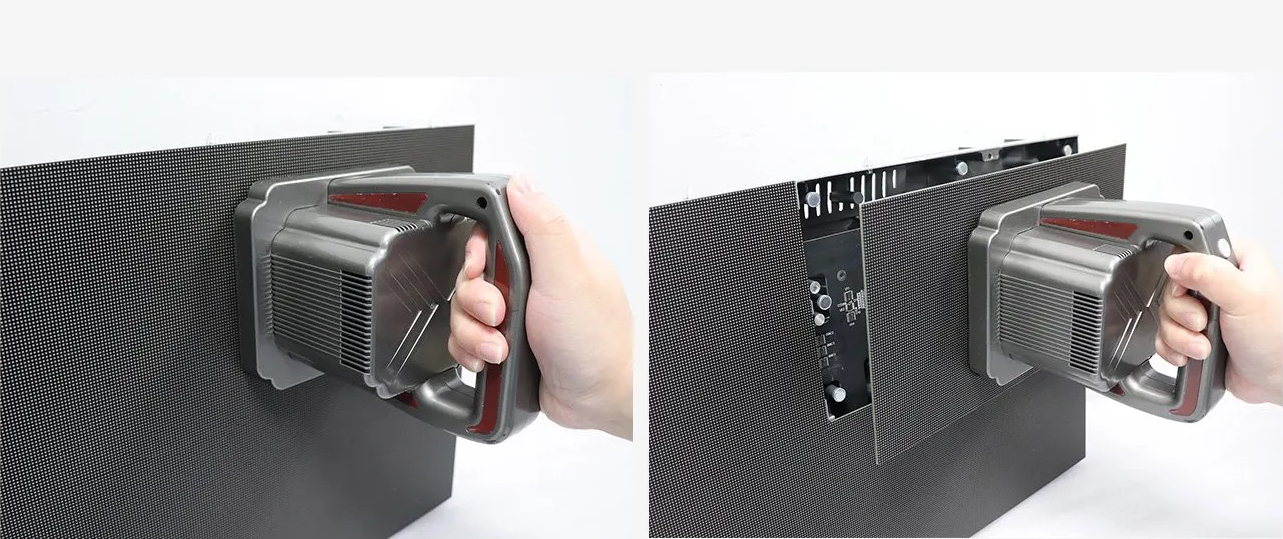

easy to install and disassemble High difinition quality in an HD LED display



Perfect Display Effect

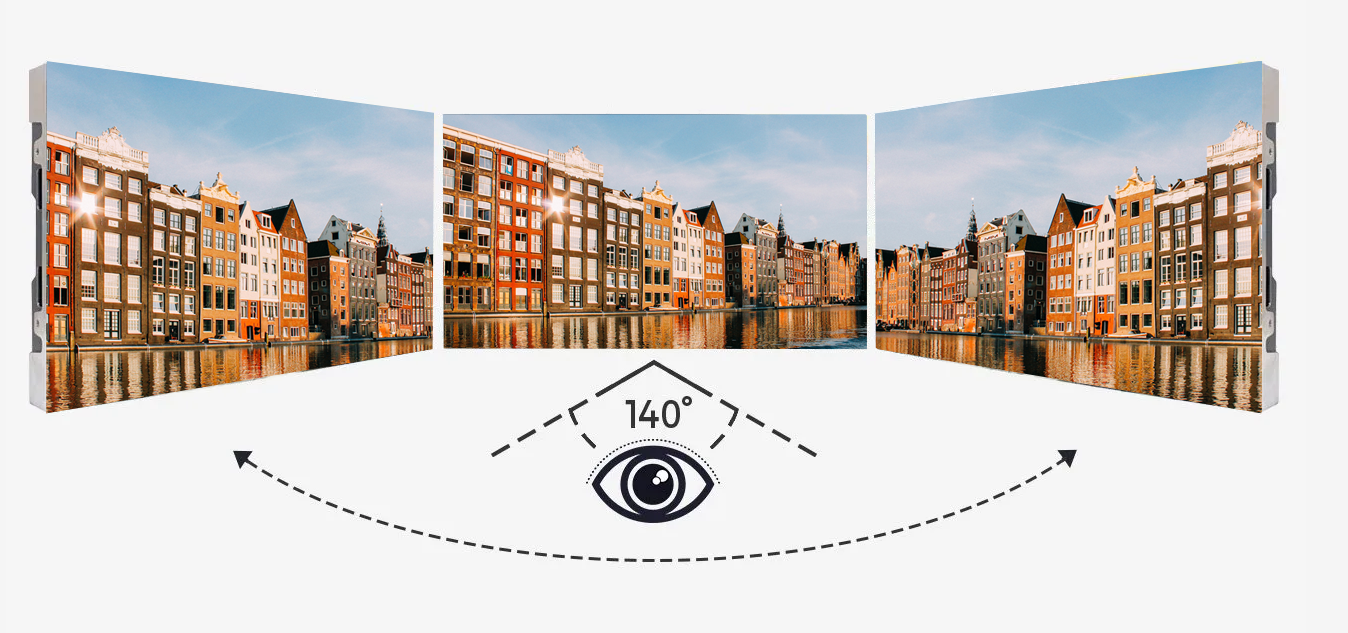

Viewing angle is up to 140° vertical and horizontal providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area.

It offers you clear and natural images in all directions.

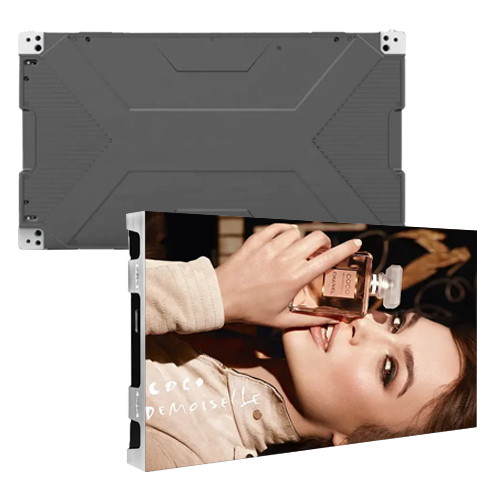

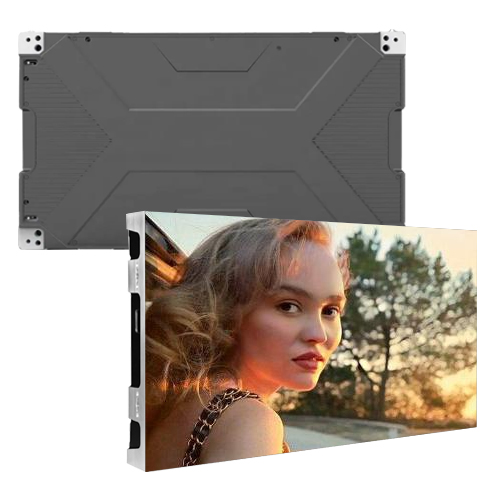

Cabinet Design



Die cast aluminum cabinet guarantee you a flat and seamless screen. Good uniformity.

Dot-to-dot correction technology provide you pure image with great gradation.




Model   TVD-IN-P0.9 TVD-IN-P1.2 TVD-IN-P1.5  TVD-IN-P1.8
Pixel Pitch mm 0.9375mm 1.25mm 1.56mm 1.875mm
IP Rate Indoor(IP32)
Brightness cd/m2  900         900 600-800 600-800
LED Type   4IN1 Nationstar 3IN1SMD1010 3IN1SMD1010    3IN1SMD1010/1515
Viewing Angel degree:H 160° 160° 160° 160°
degree:V 160° 160° 160° 160°
Size(WxHxD) mm/LDM 150mmx168.75mm 150mmx168.75mm 150mmx168.75mm 240mmx240mm
mm/tile 600mmx337.5mmx76mm 600mmx337.5mmx76mm 600mmx337.5mmx76mm 480mmx480mm
Weight MODULE 0.45kg
tile 6.8kg 6.8kg 6.8kg 6.8kg
sqm 33.5kg 33.5kg 33.5kg 33.5kg
Pixel Density pixel/tile 640x360 480x270 384x216 256x256
pixel/sqm 1135872 640000 409577 284444
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V50/60
Power Consumption (max/average)   W/tile 166/55 166/50 115/40 188/58
W/sqm 375/175 820/250 820/255 820/255
Max.Power Connection tile 15 15 17 20
Max.Date Connection tile 25 30 30 30
Color Process bit/color 14～16
Refresh Rate Hz 3840Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18
Curved degree(NON) ＿ ＿ ＿ ＿
Certification                             ROHS CE FCC
