Pixel Pitch : SNX-OTD-HP16 / HP20
Panel Dimansions:256mm x 256mm /320mm x 160mm
Refresh Rate:1920/3840Hz

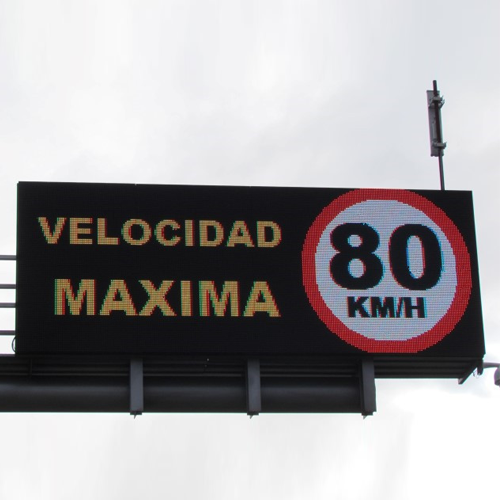

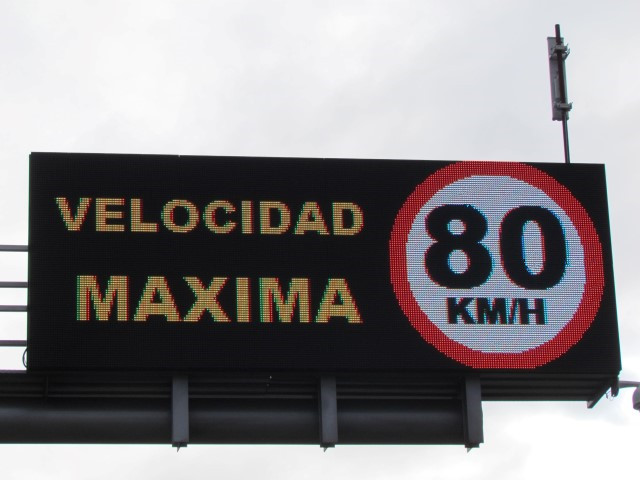

SMART LED MESH Highway Application
Safe and Stable
Standard manufacturing process and a number of quality tests ensure safe operation .
Reliable Raw Materials
Standardized manufacturing process
Quality control throughout whole manufacturing process
Certifications
Save operating cost
Long service life
Panel Dimansions:256mm x 256mm /320mm x 160mm
Refresh Rate:1920/3840Hz
○ High Brightness -13000CD+~30000CD
○ Customized project details
○Energy Saving;
○ Specal Power Input 9-36V;
○Protection level : IP68
○Error Inspection IC : MBI5045 OEM

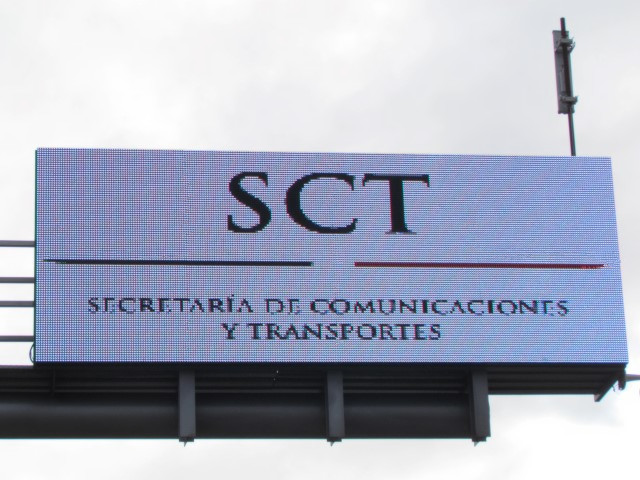

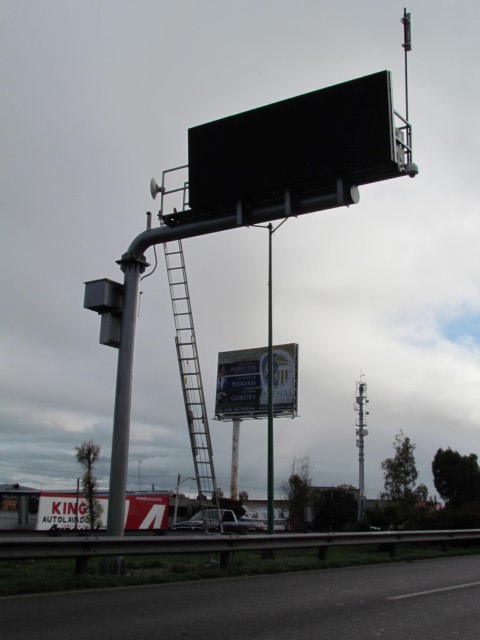

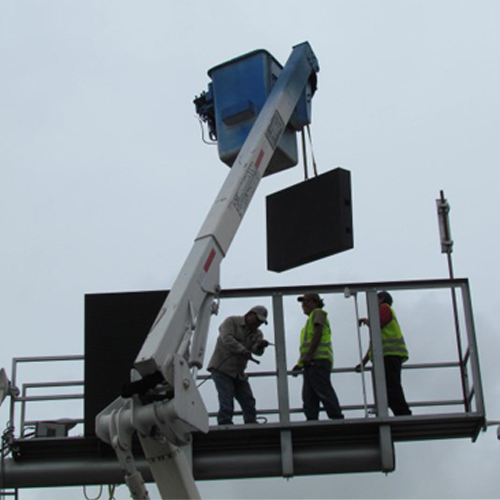

Well-known & matured led display-Mexico highway along with
○ Customized project details
○Energy Saving;
○ Specal Power Input 9-36V;
○Protection level : IP68
○Error Inspection IC : MBI5045 OEM
Well-known & matured led display-Mexico highway along with
SMART LED MESH Highway Application
Safe and Stable
Standard manufacturing process and a number of quality tests ensure safe operation .
Reliable Raw Materials
Standardized manufacturing process
Quality control throughout whole manufacturing process
Certifications
Save operating cost
Long service life
| Parameter | Unit | Value |
| Pitch | mm | 20 |
| Brightness | nits | 12000 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 120(-60~ +60） |
| Viewing angle – Vertical (50% brightness) | deg. | 120(-60~ +60) |
| Panel weight | kg | 65 |
| Panel width | mm | 1280 |
| Panel height | mm | 1280 |
| Panel depth | mm | 165 |
|
Cabinet area |
sq. m. | 1.64 |
| Bracket material | Iron |
| Service access | Back service |
| Interactive | Yes |
| Humidity operating | RH | 10% ~ 90% |
| Operating temperature range | deg. C | -25 to +60 |
| International Protection | IP | IP65/54 |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel | 1280×1280 |
| Dot per panel | 4096 |
| Dot per sq. meter | 2497 |
| LED per sq. meter | 7491 |
| Recommended minimum viewing distance | m | 18 |
| Colors | 281 Trillion |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 2000:1 |
| Processing depth | bit | 16 |
|
Video fr |
Hertz | 60 |
| Display refresh rate | Hertz | 1920~3840 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max/m2) | Watts | 230 |
| Input power (typical/m2) | Watts | 150 |
| Lifetime (50% brightness) | Hours | ≥80000 |
| Red wavelength (dominant) | nm | 625 |
| Green wavelength (dominant) | nm | 525 |
| Blue wavelength (dominant) | nm | 470 |
| Multimedia data format | DVIMPGAVIWMVRM etc. |
SNX-OTD-P16-Highway LED Display-Mexico
