Pixel Pitch: P2.9SK P3.9SK P4.8SK
Dimensiones del panel: 500mm x 500mm / 1000mm x 85 mm
Tamaño del módulo: 250 mm x 250 mm
Material del panel: Die de fundición de aluminio + diseño de HUB
Detalles de embalaje: caja de madera / caja de vuelo
1 HD
2. Ultra delgado y ultra ligero
3. Baja atenuación alto nivel de gris buena estabilidad antiestático

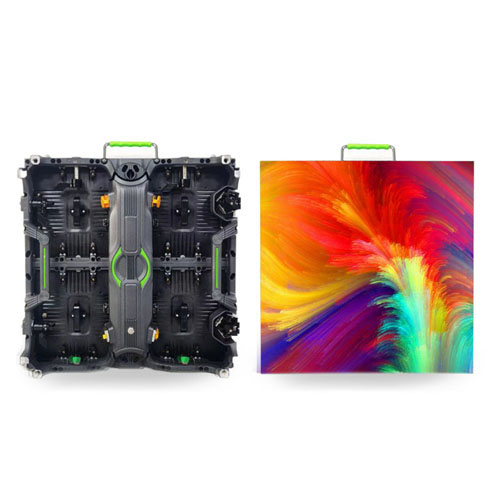

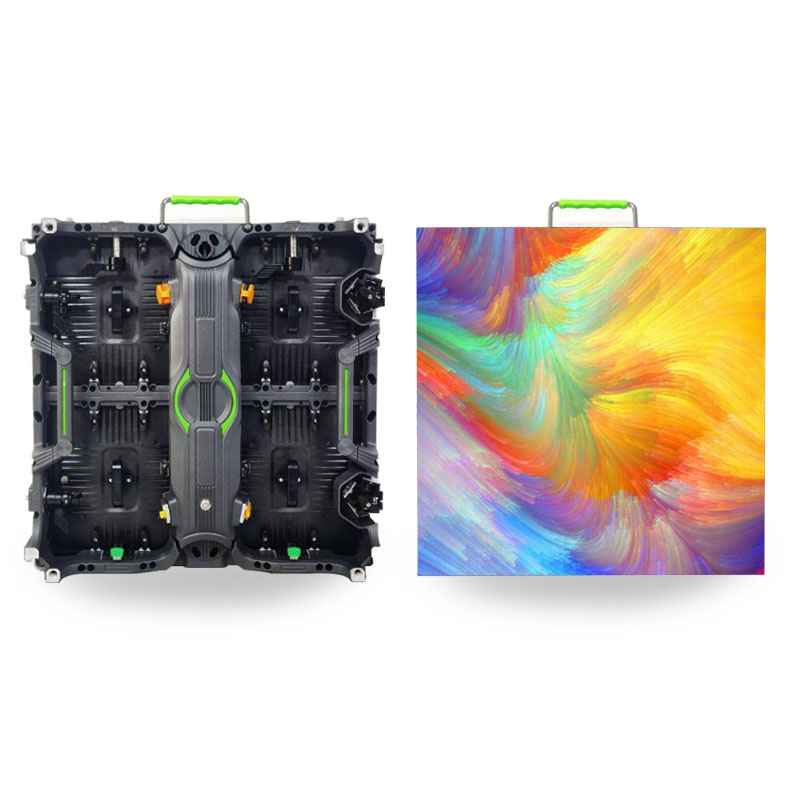

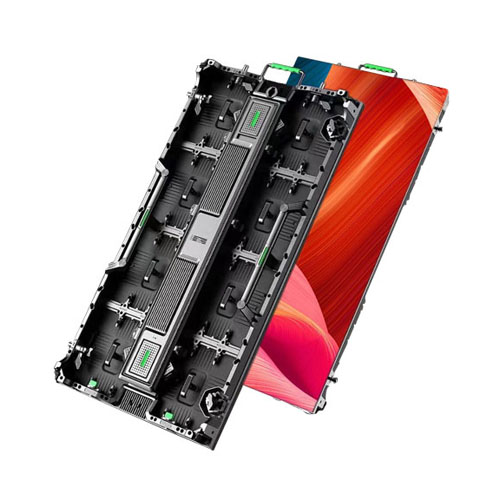

4. Todo el gabinete de aluminio fundido a presión 500 * 500 mm o 500 * 1000 mm
Diseño de conexión dura con caja de alimentación desmontable y placa HUB
Alta resistencia al agua IP65 con anillo de goma de doble sellado
Montaje rápido de hebillas para montar y desmontar la tapa trasera.
| Rental & Fixed | SSX-IN-P2.9SK | SSX-IN/OTS-P3.9SK | SSX-OTS-P4.8SK |
| Pixel Pitch (mm) | 2.976 | 3.91 | 4.81 |
| Pixel Density (dot/㎡ ) | 112896 | 65536 | 43264 |
| LED Type | SMD2121 | SMD2121/SMD1921 | SMD2727 |
| Module Size (W x H x D)mm | 250x250x20 | 250x250x20 | 250x250x20 |
| Module Resolution (W x H) | 84X84 | 64x64 | 52x52 |
| Module Weight (Kg) | 0.35 | 0.5 | 0.5 |
| Power Consumption per Module (W) | 20 | 20 | 20 |
| Driver Mode (Scan) | 1/16 | 1/16 | 1/14 |
| Brightness (cd/㎡ ) | ≥1200 | ≥1200/5000 | ≥5000 |
| Grey Scale (bits) | 14 | 14 | 14 |
| Refresh Rate (Hz) | ≥1920/3840 | ≥1920/3840 | ≥1920/3840 |
| Cabinet Size (W x H x D)mm | 500x1000x85 | 500x1000x85 | 500x1000x85 |
| Cabinet Resolution (W x H) | 168x336 | 128x256 | 104x208 |
| Cabinet Weight (Kg/㎡ ) | 25 | 25/26 | 26 |
| Max Power Consumption (W/㎡ ) | ≤800 | ≤ 650/800 | ≤800 |
| Average Power consumption (W/㎡ ) | 250 | 250/285 | 285 |
| View Angle (Hº/Vº) | 140/120 | 140/120 | 120/120 |
| Mini View Distance (m) | 3 | 3.5 | 4.5 |
| Operating Use Temperature (℃) | -10℃~40℃ | ||
| Storage Use Temperature (℃) | -20℃~50 ℃ | ||
| Input Voltage (V) | 220V/110~240V | ||
| Input Power Frequency (Hz) | 50Hz-60Hz | ||
| Failure Rate | <1/100000 | ||
| Signal Input Format | SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc. | ||
| Life Time (hrs) | 80000 | ||
| IP Level (Indoor/Outdoor) |
IP40 / IP65 |
||
| Rental & Fixed | SSX-IN-P2.9SK | SSX-IN/OTS-P3.9SK | SSX-OTS-P4.8SK |
| Pixel Pitch (mm) | 2.976 | 3.91 | 4.81 |
| Pixel Density (dot/㎡ ) | 112896 | 65536 | 43264 |
| LED Type | SMD2121 | SMD2121/SMD1921 | SMD2727 |
| Module Size (W x H x D)mm | 250x250x20 | 250x250x20 | 250x250x20 |
| Module Resolution (W x H) | 84X84 | 64x64 | 52x52 |
| Module Weight (Kg) | 0.35 | 0.5 | 0.5 |
| Power Consumption per Module (W) | 20 | 20 | 20 |
| Driver Mode (Scan) | 1/16 | 1/16 | 1/14 |
| Brightness (cd/㎡ ) | ≥1200 | ≥1200/5000 | ≥5000 |
| Grey Scale (bits) | 14 | 14 | 14 |
| Refresh Rate (Hz) | ≥1920/3840 | ≥1920/3840 | ≥1920/3840 |
| Cabinet Size (W x H x D)mm | 500x1000x85 | 500x1000x85 | 500x1000x85 |
| Cabinet Resolution (W x H) | 168x336 | 128x256 | 104x208 |
| Cabinet Weight (Kg/㎡ ) | 25 | 25/26 | 26 |
| Max Power Consumption (W/㎡ ) | ≤800 | ≤ 650/800 | ≤800 |
| Average Power consumption (W/㎡ ) | 250 | 250/285 | 285 |
| View Angle (Hº/Vº) | 140/120 | 140/120 | 120/120 |
| Mini View Distance (m) | 3 | 3.5 | 4.5 |
| Operating Use Temperature (℃) | -10℃~40℃ | ||
| Storage Use Temperature (℃) | -20℃~50 ℃ | ||
| Input Voltage (V) | 220V/110~240V | ||
| Input Power Frequency (Hz) | 50Hz-60Hz | ||
| Failure Rate | <1/100000 | ||
| Signal Input Format | SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc. | ||
| Life Time (hrs) | 80000 | ||
| IP Level (Indoor/Outdoor) | IP40 / IP65 | ||
